10-in-1 Professional Air Quality Monitor: Real-time CO2, PM2.5, TVOC, & CO Meter with Tuya App Control & RS485 for Smart Home

Brand Name:	GZAIR
Model Number:	PT02-Plus-A
MOQ:	1
Price:	Please contact customer service
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	Please contact customer service

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE FCC EU

Packaging Details:

Please contact customer service

Supply Ability:

Please contact customer service

Product Description

Product Features:

10-in-1 Comprehensive Monitoring

Integrates AQI, CO2, CO, PM2.5, PM1.0, pollen, TVOC, noise, temperature and humidity monitoring in one device for all-round environmental detection.

Medical-Grade Precision Sensors

Equipped with high-precision sensors, with CO2 measurement error controlled within ±50ppm or ±5% (whichever is stricter), ensuring accurate and reliable monitoring results.

Smart App Remote Management

Fully compatible with Tuya Smart and Smart Life Apps, supporting dual-band Wi-Fi connection (2.4GHz & 5GHz) for seamless remote control.

Customizable Alarm Thresholds

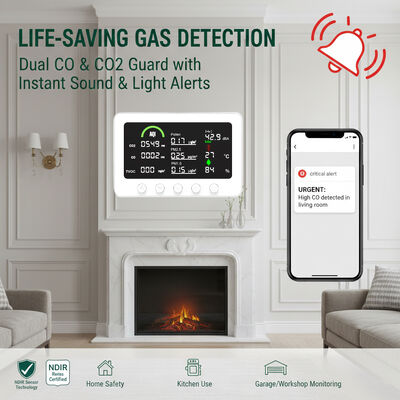

Users can freely set alarm critical values for all parameters as needed; an audible and visual alert will be triggered immediately when air quality exceeds the preset standards.

Professional System Integration

Built-in RS485 interface with Modbus protocol support, enabling easy integration with fresh air systems, air conditioners or humidifiers for industrial-grade automated linkage.

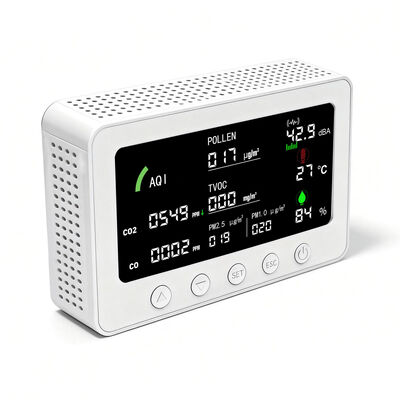

Clear Large-Screen Display

Features a high-definition display screen; AQI and noise levels are presented with intuitive rating scales (Good/Moderate/Poor), allowing you to grasp environmental conditions at a glance.

Adjustable Backlight Design

Offers three backlight modes: Normal, Low, Off. No interference for reading in daylight or sleeping at night.

Compliant & Safety Certified

Meets FCC regulations and EN 14604, EN 50291 standards, with quality validated through rigorous testing.

Product Name:	Smart indoor Multiple Air Quality Monitor
Model:	PT02-Plus-A
Intended use	Detect and digitally real- timely monitor: CO2, CO, Pollen,PM1.0, PM2.5, TVOC, Humidity,AQI,Noise
Measuring Object	Measuring Range	Resolution
CO2	Measuring Range	Resolution
CO	400-5000PPM	1 PPM
TVOC	0-999PPM	1 PPM
PM2.5	0～9.99mg/m3	0.05 mg/m3
PM1.0	0~100 μg/m3 101-500μg/m3	1 μg/m3
Pollen	0～500μg/m3	1 μg/m3
Temperature Measuring Range	-20~60℃	±2℃
Humidity Measuring range	5% ~ 95% RH	±5%RH
Co2 indicator	0-499PPM -- Green light bar	500-999PPM -- Yellow light bar
	1000-1499PPM -- Orange light bar	over 1500PPM --Red bar
TVOC	over 0.5mg/m3--buzzer alarm
PM2.5	over 75μg/m3 --buzzer alarm
PM1.0	over 75μg/m3 --buzzer alarm
Material	ABS+LCD
Power supply	DC12V adaptor (US/EU/UK)
Product weight and size	1120g / 180mm( L )* 39mm( W )* 119mm( H )
Warm-up time	< 7 seconds
Sensor	NDIR Co2 sensor
	Laser dust sensor
	Laser TVOC sensor
	Temperature and humidity sensor
Working Temperature	0 °- 50 °C
Working humidity	0-95% (non-condensing)
Input Voltage	DC 12V/2A
App controller	Tuya smart life app
