High Precision Indoor Air Pollution Monitor IAQ Monitoring Devices 24V WiFi Modbus BACnet Integration

Name: High Precision Indoor Air Pollution Monitor IAQ Monitoring Devices 24V WiFi Modbus BACnet Integration
Brand: Guangzhou GZAIR Instruments Co., Ltd.
SKU: CH60
Price: 99.00 USD
Availability: InStock

Brand Name:	GZAIR
Model Number:	CH60
MOQ:	10
Price:	$29 - $169
Payment Terms:	,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, FCC

Document:

CH60.pdf

Display Dimensions:

76.5X52 Mm(W/H)

Dimensions(W/H/D):

96*86*32.5(mm)

Weight:

≤200g

Enclosure Rating:

IP 21

Packaging Details:

530*365*265mm/carton

Supply Ability:

1000 pieces per month

Highlight:

BACnet indoor air pollution monitor

24V indoor air pollution monitor

24V indoor air quality monitoring devices

Product Description

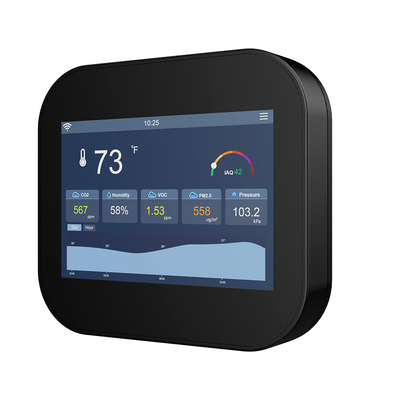

High-Precision IAQ Sensor with Color Touchscreen, 24V Input & WiFi/Modbus/BACnet Integration

Ensure optimal indoor environments with the High-Precision IAQ Sensor, designed for seamless integration and professional-grade air quality monitoring. Equipped with a vibrant color touchscreen, this advanced device supports multiple communication protocols — including WiFi, Modbus RTU/TCP, and BACnet/IP — making it ideal for smart buildings, HVAC systems, BMS networks, and industrial automation.
Powered by a reliable 24V input, the sensor continuously monitors CO₂, PM2.5, VOCs, Pressure, temperature, and humidity with laboratory-grade accuracy. Its intuitive interface displays real-time data and trend graphs, while configurable thresholds trigger alerts to help maintain healthy air and ensure compliance in sensitive environments.
Key Features:
Color Touchscreen Interface: Instantly view real-time readings and historical trends
24V Power Supply Compatible: Industrial-grade voltage input for commercial and system-based deployments
Flexible Communication Options: Supports WiFi, Modbus RTU/TCP, and BACnet/IP for easy integration into any BMS or IoT platform
Comprehensive Air Quality Monitoring: Measures CO₂, PM2.5, VOCs, Pressure, temperature, and humidity with high precision
Custom Alerts & Thresholds: On-screen and remote notifications help prevent poor air conditions
Professional-Grade Design: Built for continuous use in commercial buildings, schools, healthcare, labs, and industrial spaces

Power Supply	24VAC
Display	320x480 pixels color TFT Capacitive touch
LoRaWAN	868mHz/923mHZ/915mHZ
WiFi	IEEE 802.11b/g/n-2.4ghz
BACnet	MSTP/IP
Modbus	RTU/TCP
Security	WPA/WPA2
Operating temperature	1°C-85°C
Sensors	Co2: 0-5000ppm(±30ppm +3%MV)
	Temperature:-10°C-70°C,(0.5 C 25 C)
	Humidity:0-100%,±3% VOC: 0-60.000 ppb
	Particulate Matter (PM1.5,PM2.5 PM4PM10): 4 KB0-100 μg/m3(±10μg/m3),100-1000(±10%)
	Pressure: 50 to 115 kPa ±1 kPa
Communication	WiFi-MQTT, modbus TCP LoRaWan(Option)
Communication	BACnet MS/TP,IP(Option) Modbus RTU/TCP(Option)
Data protocals	MQTT
Data protocals	Device Configuration Using HTTP Download OTA Updates Via HTTP
NDIR life time	15 Years
Standby power consumption	≤0.5 W
Display dimensions	76.5X52 mm(W/H)
Dimensions(W/H/D)	968632.5(mm)
Weight	≤200g
Enclosure rating	IP 21
Product material	PC+ ABS plastic

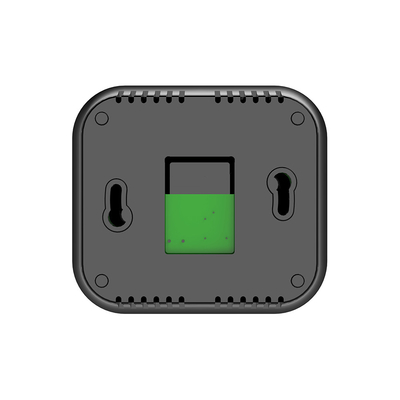

High Precision Indoor Air Pollution Monitor IAQ Monitoring Devices 24V WiFi Modbus BACnet Integration 0
