Smart Air Quality Monitor
Created with Pixso.

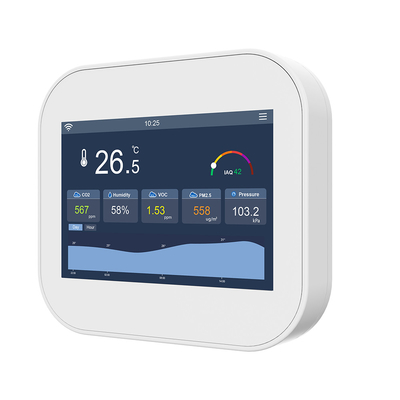

IEEE 802.11b WiFi IAQ Smart Air Sensor Co2 Monitor 320x480 TFT Screen

IEEE 802.11b WiFi IAQ Smart Air Sensor Co2 Monitor 320x480 TFT Screen

Brand Name: GZAIR
Model Number: CH60
MOQ: 10
Price: $29 - $169
Payment Terms: ,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 pieces per month
Detail Information
Place of Origin:
China
Certification:
CE, RoHS, FCC
Document:
Power Supply:
24VAC
Display:
320x480 Pixels Color TFT Capacitive Touch
LoRaWAN:
868mHz/923mHZ/915mHZ
WiFi:
IEEE 802.11b/g/n-2.4ghz
BACnet:
MSTP/IP
Modbus:
RTU/TCP
Packaging Details:
530*365*265mm/carton
Supply Ability:
1000 pieces per month
Highlight:

IEEE 802.11b smart air sensor

,

320x480 smart air sensor

,

320x480 air quality co2 monitor

Product Description

All-in-One Smart IAQ Sensor with Touchscreen & Versatile Connectivity Options

Simplify and elevate your indoor air quality monitoring with the All-in-One Smart IAQ Sensor, designed for modern buildings, smart homes, and commercial environments. Featuring a sleek touchscreen interface and multi-protocol connectivity, this advanced sensor delivers real-time environmental insights while integrating effortlessly with your preferred automation systems.
This compact powerhouse monitors CO₂, PM2.5, VOCs, Pressure, temperature, and humidity with industry-grade precision. Its intuitive color touchscreen makes it easy to visualize air quality at a glance, while support for WiFi, Modbus, BACnet, MQTT, and LoRaWAN ensures flexible installation and communication across diverse platforms — from BMS and HVAC to cloud-based dashboards.
Key Features:
Intuitive Color Touchscreen: Instantly view and interact with live air quality data and trend graphs
Multiple Connectivity Options: Supports WiFi, Modbus RTU/TCP, BACnet/IP, MQTT & LoRaWAN for seamless integration
6-in-1 Sensor Monitoring: Tracks CO₂, PM2.5, VOCs, Pressure, temperature, and humidity in real time
Data Logging & Cloud Sync: On-device storage and cloud integration for long-term analysis and reporting
Real-Time Smart Alerts: Visual and remote alerts when air quality exceeds safe thresholds
Professional Integration Ready: Ideal for BMS, SCADA, HVAC controls, smart home systems, and environmental compliance
Low-Power, High-Efficiency: Energy-efficient operation with 24V power source

Power Supply 24VAC
Display 320x480 pixels color TFT Capacitive touch
LoRaWAN 868mHz/923mHZ/915mHZ
WiFi IEEE 802.11b/g/n-2.4ghz
BACnet MSTP/IP
Modbus RTU/TCP
Security WPA/WPA2
Operating temperature 1°C-85°C
Sensors Co2: 0-5000ppm(±30ppm +3%MV)
Temperature:-10°C-70°C,(0.5 C 25 C)
Humidity:0-100%,±3% VOC: 0-60.000 ppb
Particulate Matter (PM1.5,PM2.5 PM4PM10): 4 KB0-100 μg/m3(±10μg/m3),100-1000(±10%)
Pressure: 50 to 115 kPa ±1 kPa
Communication WiFi-MQTT, modbus TCP LoRaWan(Option)
BACnet MS/TP,IP(Option) Modbus RTU/TCP(Option)
Data protocals MQTT
Device Configuration Using HTTP Download OTA Updates Via HTTP
NDIR life time 15 Years
Standby power consumption ≤0.5 W
Display dimensions 76.5X52 mm(W/H)
Dimensions(W/H/D) 96*86*32.5(mm)
Weight ≤200g
Enclosure rating IP 21
Product material PC+ ABS plastic
