Compact PM2.5/VOC IAQ Monitoring System Indoor Air Quality Instruments

Compact PM2.5/VOC IAQ Monitoring System Indoor Air Quality Instruments

Brand Name:	GZAIR
Model Number:	CH6
MOQ:	10
Price:	$29 - $169
Payment Terms:	,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, FCC

CO2:

0-5000ppm(±30ppm +3%MV)

Temperature:

-10°C-70°C,(0.5 C 25 C)

Humidity:

0-100%,±3%

Particulate Matter (PM1.5,PM2.5 PM4PM10):

4 KB0-100 μg/m3(±10μg/m3)，100-1000(±10%)

VOC:

0-60.000 Ppb

Pressure:

50 To 115 KPa ±1 KPa

Packaging Details:

530*365*265mm/carton

Supply Ability:

1000 pieces per month

Highlight:

PM1.0 iaq monitoring system

Compact iaq monitoring system

PM1.0 indoor air quality instruments

Product Description

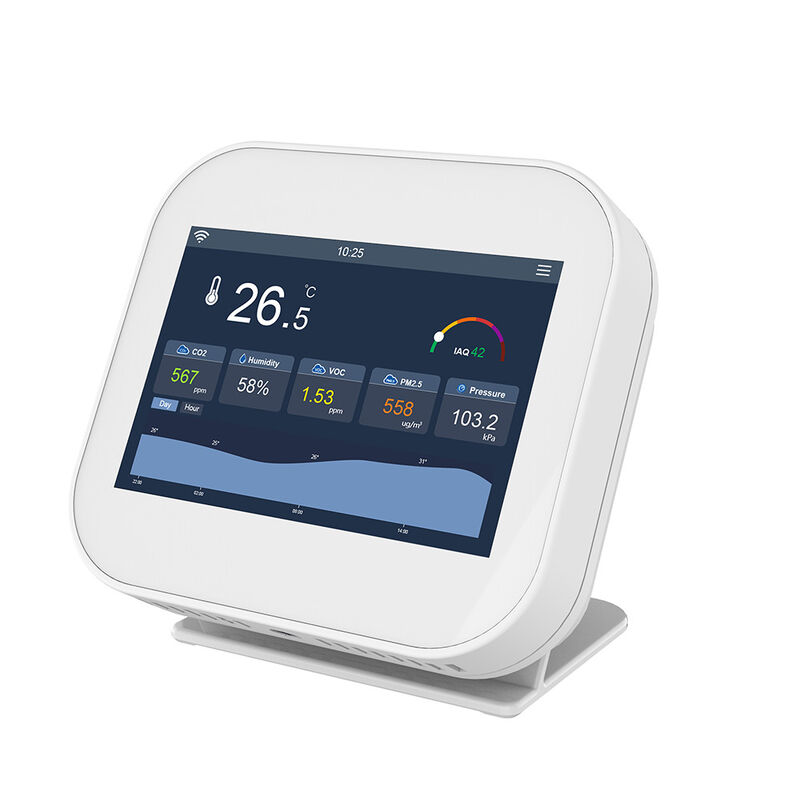

All-in-One Smart Air Quality Monitor with Color Touchscreen

Take control of your indoor environment with the All-in-One Smart Air Quality Monitor with Color Touchscreen — a powerful and user-friendly solution for tracking air quality in real time. Designed for homes, offices, classrooms, and healthcare spaces, this intelligent monitor delivers fast, accurate readings on a wide range of indoor pollutants and climate conditions.
Featuring a vivid color touchscreen display, the monitor provides intuitive access to real-time data and trend graphs for CO₂, PM2.5/PM1.0, TVOCs, temperature, and humidity. Smart WiFi connectivity allows seamless integration with mobile apps, enabling remote monitoring, alerts, and data tracking wherever you are.
Key Features:
Multi-Sensor Accuracy: Measures CO₂, particulate matter (PM2.5/PM1.0), VOCs, Pressure, temperature, and humidity
Color Touchscreen Display: Clear, interactive interface with visual air quality indicators and graphs
WiFi Connectivity: Monitor and manage air quality remotely via companion app
Real-Time Alerts: Get instant notifications when air quality levels become unhealthy
Built-In Data Logger: Stores historical data for trend analysis and environmental insights
Rechargeable & Portable: Compact design perfect for moving room-to-room or taking on the go
Versatile Use: Ideal for homes, offices, classrooms, nurseries, healthcare facilities, and more
Create safer, cleaner, and more comfortable indoor spaces with the All-in-One Smart Air Quality Monitor — your essential tool for a healthier lifestyle.

Power Supply	USB Supply DC5V; 110-230VAC
Display	320x480 pixels color TFT Capacitive touch
LoRaWAN	868mHz/923mHZ/915mHZ
WiFi	IEEE 802.11b/g/n-2.4ghz
BACnet	MSTP/IP
Modbus	RTU/TCP
Security	WPA/WPA2
Operating temperature	1°C-85°C
Sensors	Co2: 0-5000ppm(±30ppm +3%MV)
	Temperature:-10°C-70°C,(0.5 C 25 C)
	Humidity:0-100%,±3% VOC: 0-60.000 ppb
	Particulate Matter (PM1.5,PM2.5 PM4PM10): 4 KB0-100 μg/m3(±10μg/m3),100-1000(±10%)
	Pressure: 50 to 115 kPa ±1 kPa
Communication	WiFi-MQTT, modbus TCP LoRaWan(Option)
Communication	BACnet MS/TP,IP(Option) Modbus RTU/TCP(Option)
Data protocals	MQTT
Data protocals	Device Configuration Using HTTP Download OTA Updates Via HTTP
NDIR life time	15 Years
Standby power consumption	≤0.5 W
Display dimensions	76.5X52 mm(W/H)
Dimensions(W/H/D)	968632.5(mm)
Weight	≤200g
Enclosure rating	IP 21
Product material	PC+ ABS plastic

Compact PM2.5/VOC IAQ Monitoring System Indoor Air Quality Instruments 0

Compact PM2.5/VOC IAQ Monitoring System Indoor Air Quality Instruments 1

Compact PM2.5/VOC IAQ Monitoring System Indoor Air Quality Instruments 2

Compact PM2.5/VOC IAQ Monitoring System Indoor Air Quality Instruments 3

Compact PM2.5/VOC IAQ Monitoring System Indoor Air Quality Instruments 4

Compact PM2.5/VOC IAQ Monitoring System Indoor Air Quality Instruments 5
