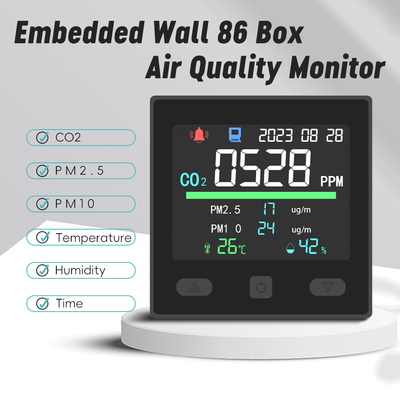

CO2 IAQ Air Quality Monitor Wifi Temperature Detector 12V 2.8inch TFT Display

Brand Name:	GZAIR
Model Number:	PT10 plus
MOQ:	10
Price:	$29 - $169
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100 sets shipped in 15 days

Detail Information

Place of Origin:

China

Certification:

Material:

ABS+LCD

Power Supply:

DC12V Adaptor (US/EU/EPS)

Sensor:

NDIR Co2 Sensor+Laser Dust Sensor+Temperature And Humidity Sensor

Signal Output:

Support Data Export/ Data Logger By RS485/Relays

App Controller:

Tuya Or Smart Life

Warm-up Time:

< 7 Seconds

Packaging Details:

100*100*50mm

Supply Ability:

100 sets shipped in 15 days

Highlight:

Product Description

Product Features

Advanced CO2 Control: This product features a high-precision CO2 sensor with a resolution of 1ppm, ensuring accurate monitoring of air quality and enabling effective control of CO2 levels in the environment.
Smart Room Thermostat Functionality: Equipped with a 2.8-inch TFT display and Modbus RS485 communication protocol, this device integrates seamlessly with various smart home systems, allowing for easy monitoring and control of room temperature and air quality.

Name	Smart Air Quality Monitor & IoT Controller
Model	PT10 plus
Intended use	Detect and real- time display CO2, PM2.5, PM1.0 temperature and humidity readings
Measuring Object	Measuring Range	Resolution
CO2	400-5000PPM	1 PPM
PM2.5	0~100 μg/m3 101-500μg/m3	±10 μg/m3 ±10%μg/m3
PM1.0	0~100 μg/m3 101-500μg/m3	±10 μg/m3 ±10%μg/m3
Temperature	-20~60℃	±2℃
Humidity	5% ~ 95% RH	±5%RH
CO2 level indicators	0-499PPM -- Green light bar	500-999PPM -- Yellow light bar
CO2 level indicators	1000-1499PPM -- Orange light bar	Over 1500PPM --Red bar
PM1.0	over 75μg/m3 --buzzer alarm
PM2.5	over 75μg/m3 --buzzer alarm
