CO2 Temperature Humidity Greenhouse Humidity Controller 240V 800x480 LCD display

Brand Name:	Other
Model Number:	BECC-PRO
MOQ:	10
Price:	$29 - $169
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100 sets shipped within 15 days

Detail Information

Place of Origin:

China

Certification:

ETL, FCC, CE

Operating Voltage:

AC 100V-240V 50/60Hz

Maximum Input Current:

10A

Maximum Output Current:

8A Per Port

Screen:

5-inch LCD Display, Resolution: 800*480

Light Control Port:

4 DC 0~10V, 30mA Per Circuit

Packaging Details:

29*29*18CM

Supply Ability:

100 sets shipped within 15 days

Highlight:

Product Description

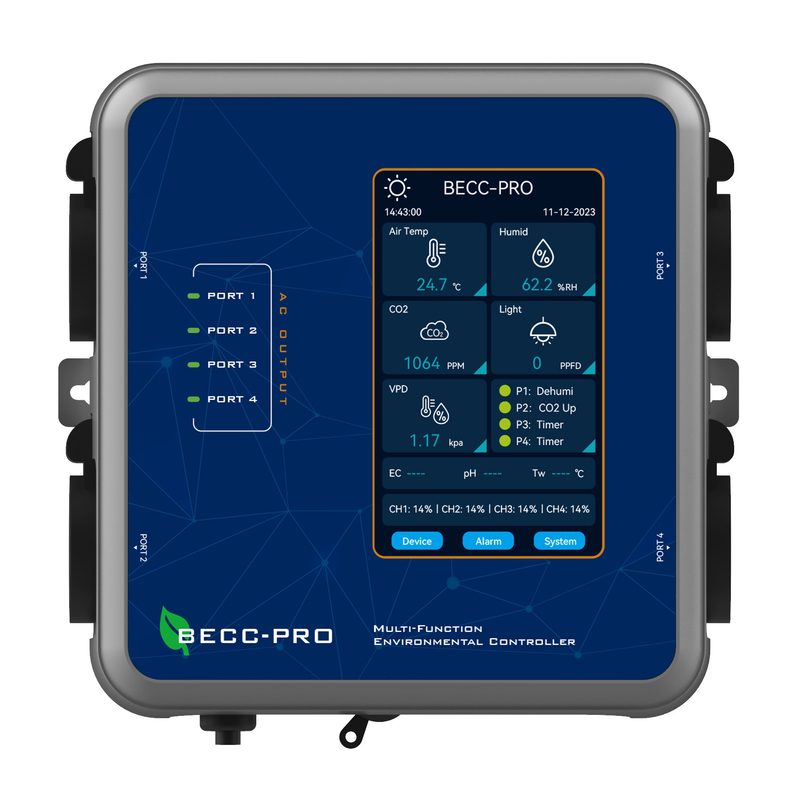

Planting control greenhouse CO2 temperature and humidity growth light controller

The controller is designed with two intelligent outlets that allow users to independently program the fan and CO2 generator to automatically adjust the inflation and ventilation conditions according to preset values to optimize the CO2 concentration in the growing environment
The controller can simultaneously measure carbon dioxide, temperature and humidity and light
Carrying APP can be connected to WIFI to detect carbon dioxide, temperature and humidity data at all times

Product Name	CO2, Temperature, Humidity & Light Controller
Model	BECC-PRO
Protection Level	IP20
Operating Temperature	0~50 degrees Celsius
Operating Humidity	<90%, non condensing
Operating Voltage	AC 100V-240V 50/60Hz
Maximum Input Current	10A
Maximum Output Current	8A per port
Screen	5-inch LCD display, resolution: 800*480
Light Control Port	4 DC 0~10V, 30mA per circuit
Internet Port	RJ45
Sensor Port	RJ12, 6P6C, RS485, Output Voltage: 12V, Output Current: 0.5A
Communication Parameters	RS485 host, baud rate 9600, no parity, 8-bit data and 1 stop bit

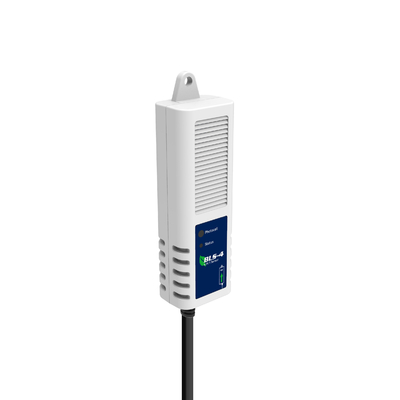

Maximum Number of Sensro Connectiions	The total number does not exceed 3 and the total current does not exceed 0.5A, which can be connected to: 1 x 4 in 1 Sensor (BLS-4) 1 X ECPH module (BSB-I) (Options) 1 X Constant light sensing module (BLS-PAR) (Optional)
Communication Parameters	RS485 host, baud rate 9600, no parity, 8-bit data and 1 stop bit
